FTS電動天棚簾

System:

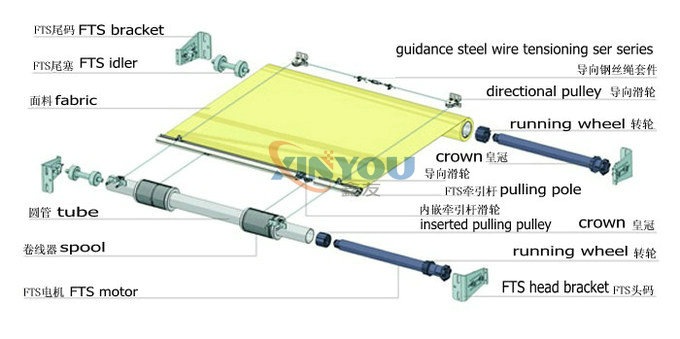

Fabric tension system, the most effective intelligent sunshade solution plan

Dynamic:

Two same FTS models specialized tubular motor with inserted electric brake system, the outside controller could be connected to adjust the strength.

Driving Mode:

Tracked driving.

Fabric Choice:

polyester fiber with PVC coating or grassfire with PVC coating after auto frottage treatment, The required fabric color is steady and have tensile strength.

Open and close model:

single open, double open.

Control Method:

Outlay wireless controller,  wireless remote control is adopted, also manual and intelligent control also could be realized.

Effect:

The fabric is smooth and the decorative effect is simple and lively.

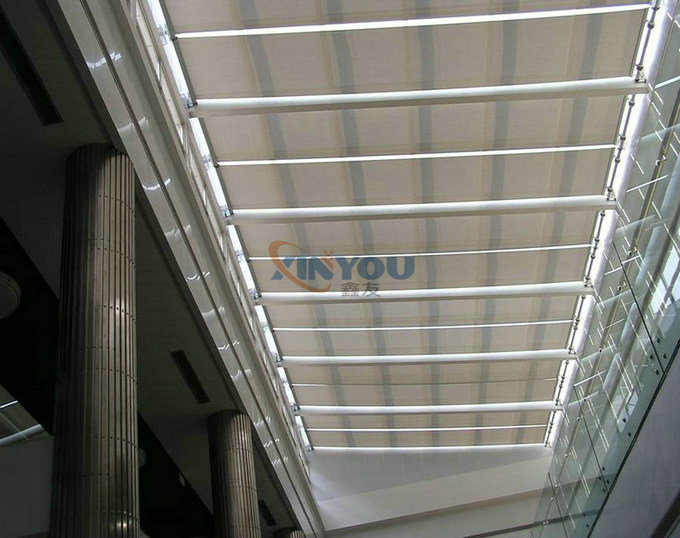

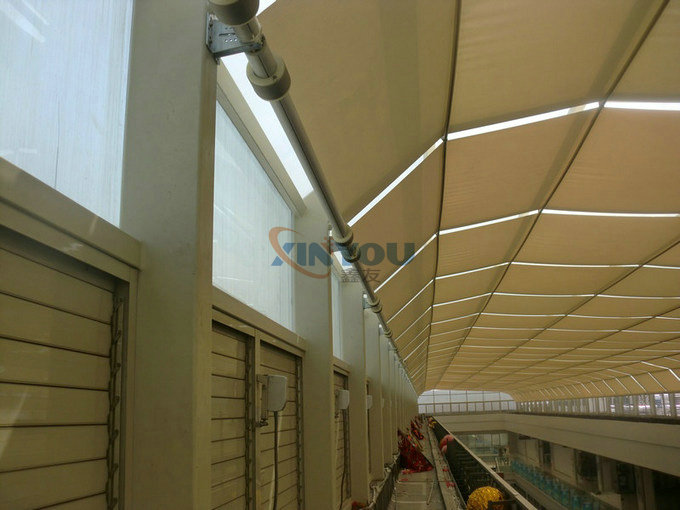

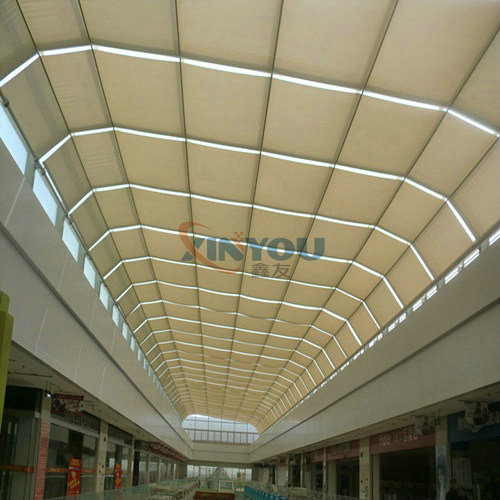

Application: Large sunshade place. The electric roof blinds is widely used in various of glass and daylighting roof in level and bevel.

型號

電源

功率

力矩/轉速

最大圈數

最大面積

應用

FTS25/17

220V 50HZ

150W

25Nm/17rpm

46圈

25㎡

配合90管，使用專用控制器

FTS55/17

220V 50HZ

350W

55Nm/17rpm

35圈

40㎡

FTS70/17

220V 50HZ

390W

70Nm/17rpm

35圈

50㎡
